Milwaukee #6 to 750 MCM Copper 12T U-Style Die Kit

The M18 force logic 750 MCM Crimper is the Easiest Way to Crimp, producing cULus classified crimps according to the UL 486A-B classification standards for #8 – 750 MCM Cu and Dual Rated Anderson, Blackburn Burndy, Ilsco, Panduit, Penn-Union and Thomas and Betts Connectors. Milwaukee EXACT 12T U-Style Dies are individually engineered both for quality crimps and for faster connections on all sizes with die lengths specific to each connector. In addition every EXACT 12T U-Style Die features vivid industry standard colors to indicate wire size and center alignment markings for easiest die selection and die alignment. All dies also eliminate cross referencing by imprinting the wire size onto completed connectors and are the only dies that are 100% serialized and measured for greatest accuracy and easiest inspection.

• Produces UL classified connections for #8 – 750 MCM dual rated connectors for seven different connector manufacturers
• Vivid color coding for easy selection

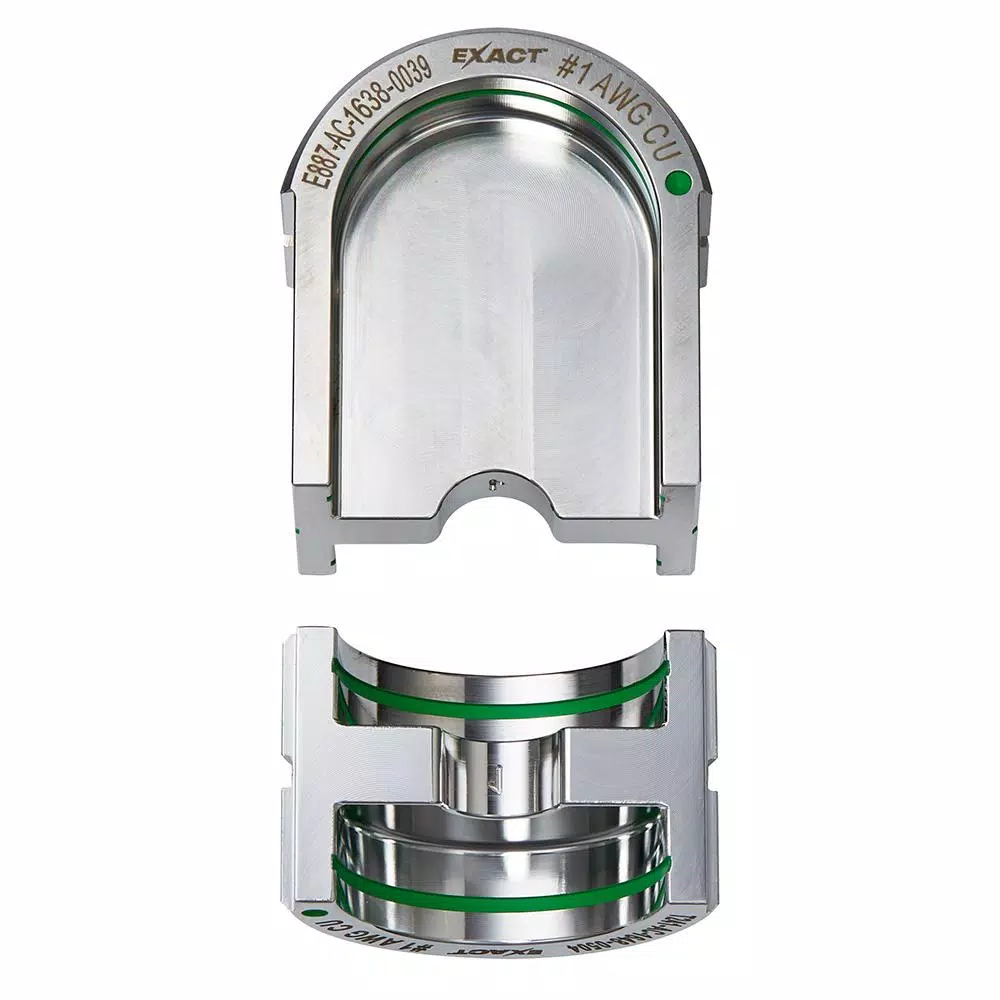

• Vividly colored center alignment mark to easily see the center of the crimp
• Wire size pressed into connector eliminates cross referencing
• Stainless Steel Finish Protects Against Corrosion
• Die Measurement reports can be purchased through Milwaukee customer service based on the serial number on each die
• Dies are available individually or as part of a kit

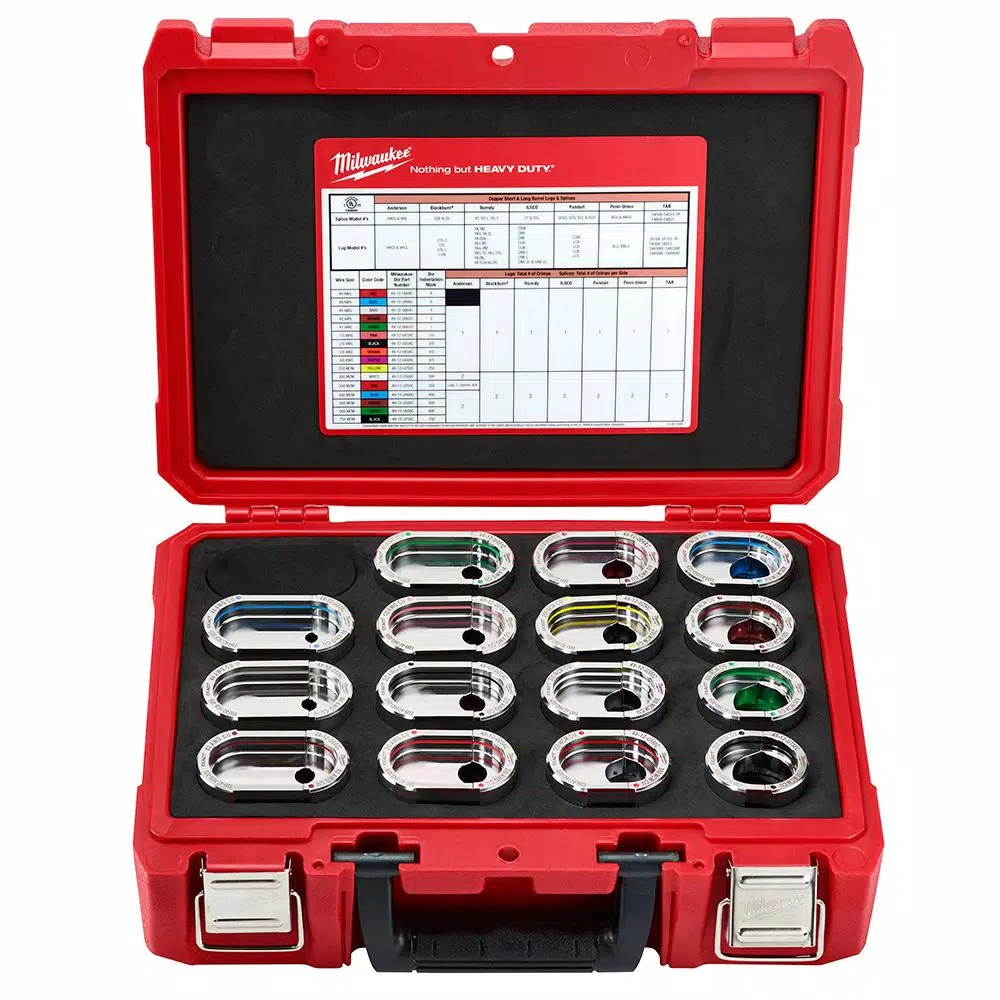

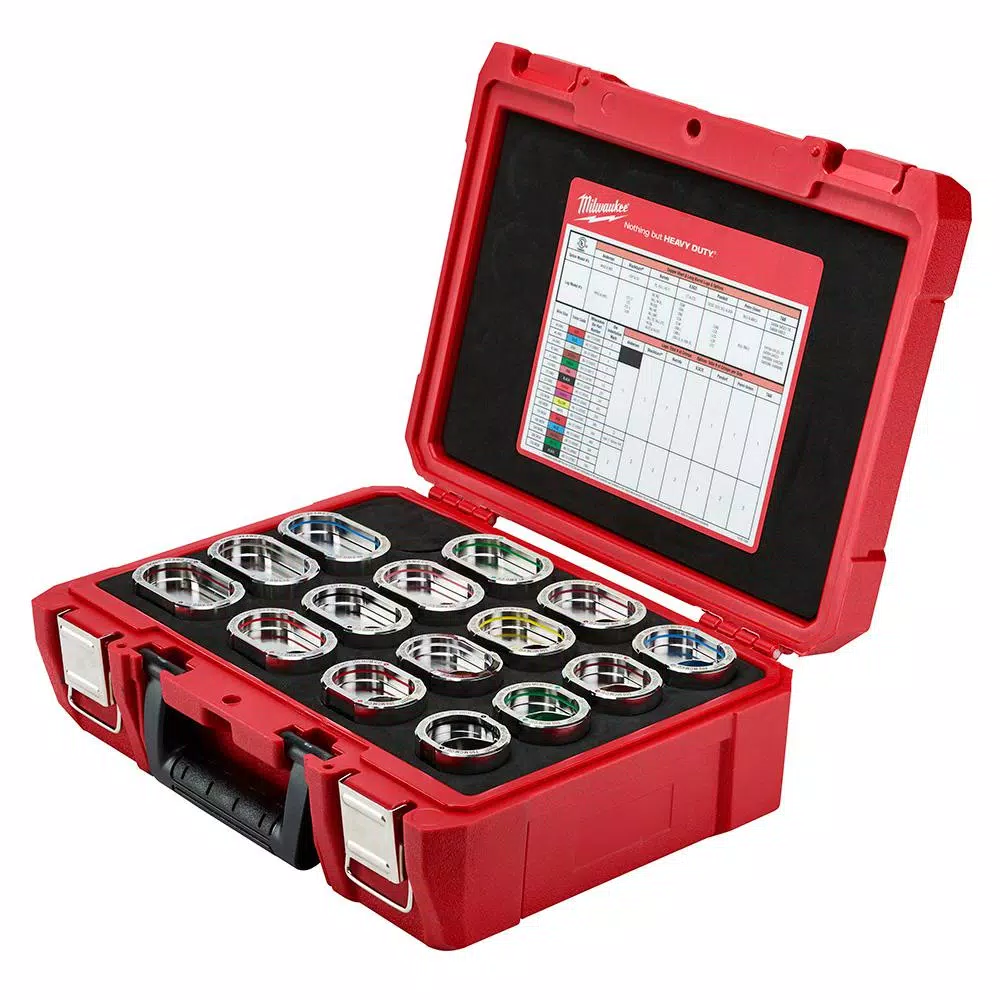

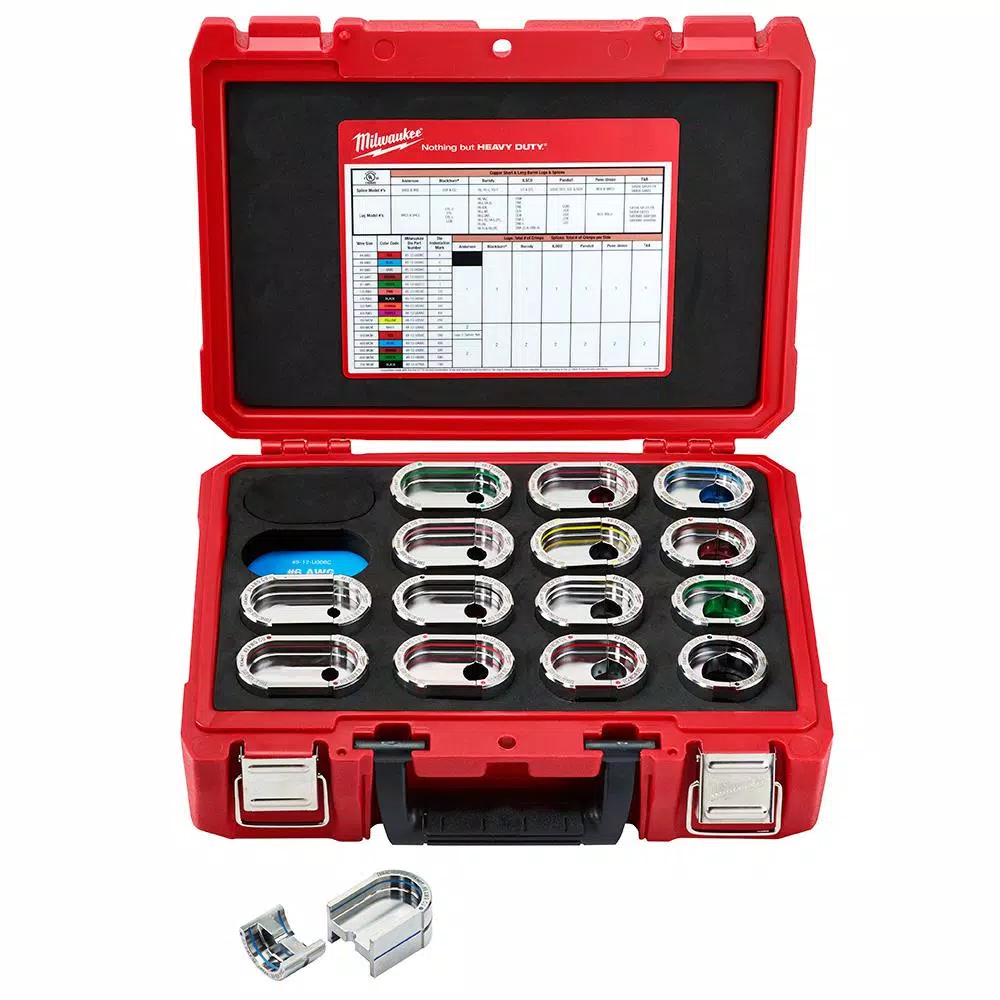

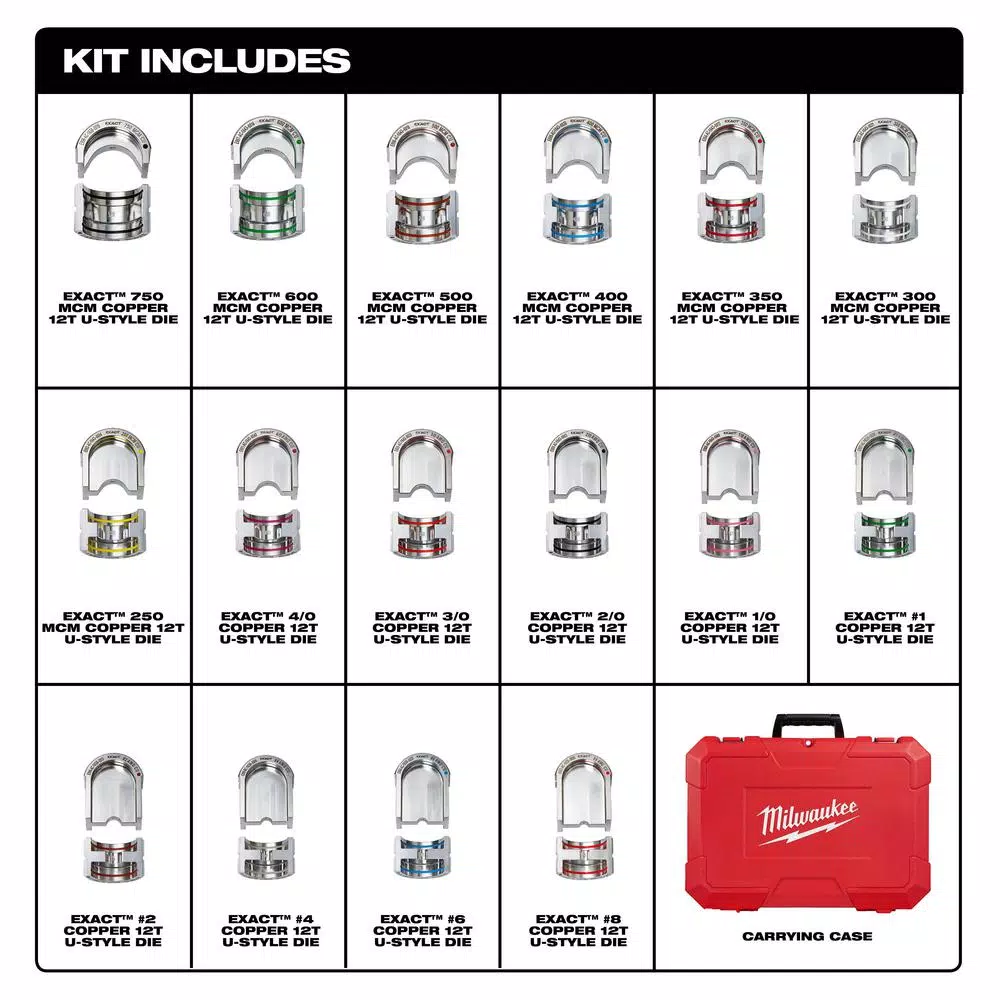

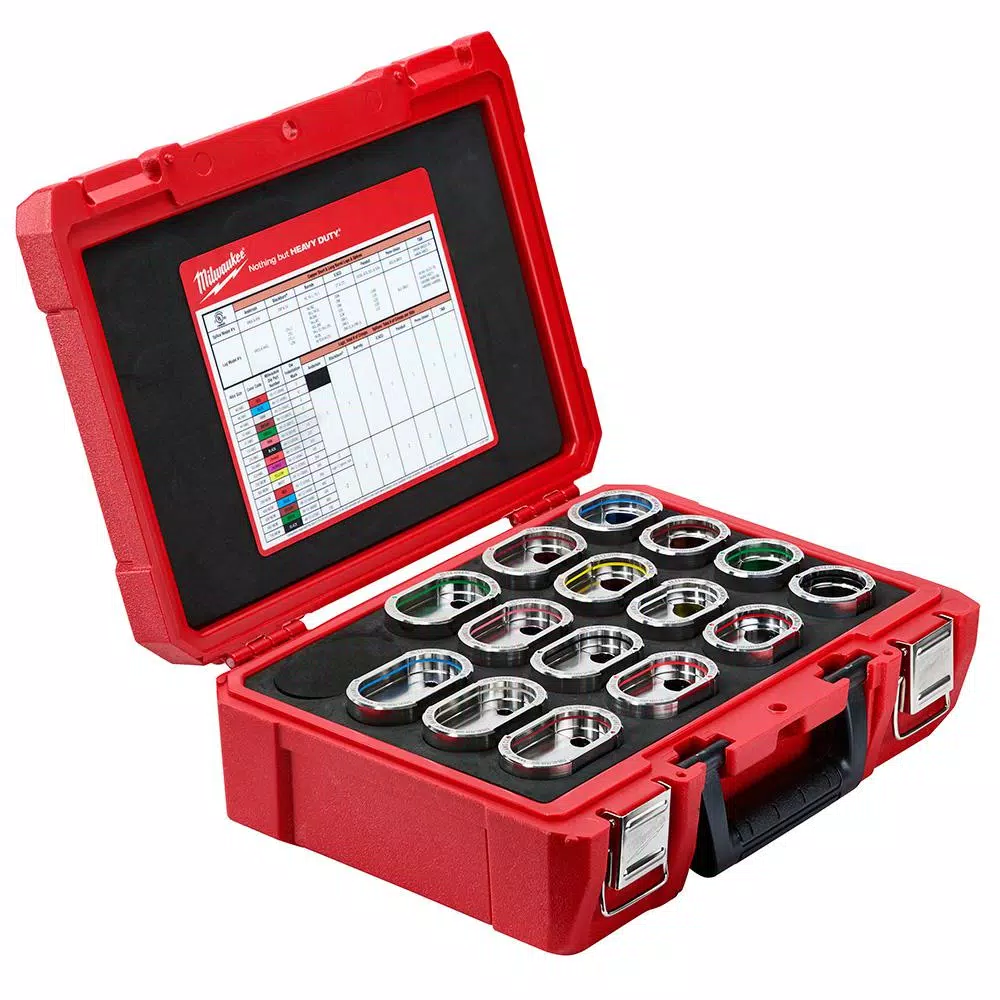

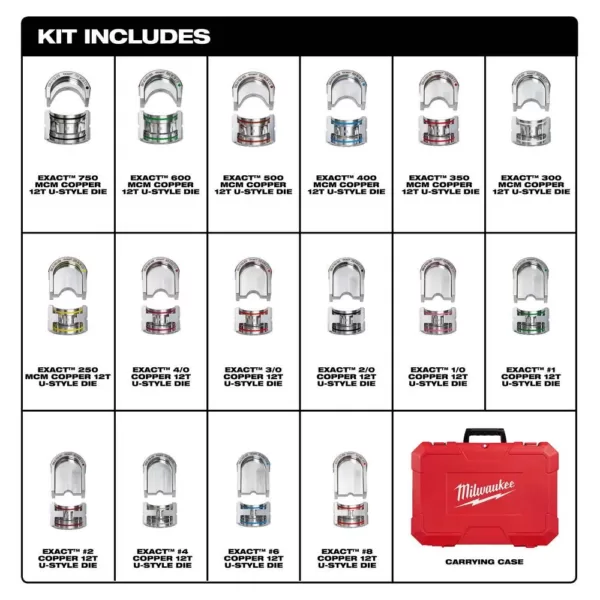

• Includes: (1) EXACT #6 copper U style die (49-12-U006C), (1) EXACT #4 copper U style die (49-12-U004C), (1) EXACT #2 copper U style die (49-12-U002C), (1) EXACT #1 copper U style die (49-12-U001C), (1) EXACT 1/0 copper U style die, (1) 49-12-U01AC, (1) EXACT 2/0 Copper U Style Die (49-12-U02AC), (1) EXACT 3/0 Copper U Style Die (49-12-U03AC), (1) EXACT 4/0 copper U style die (49-12-U04AC), (1) EXACT 250 MCM copper U style die (49-12-U250C), (1) EXACT 300 MCM copper U style die (49-12-U300C), (1) EXACT 350 MCM copper U style die (49-12-U350C), (1) EXACT 400 MCM Copper U Style Die (49-12-U400C), (1) EXACT 500 MCM copper U style die (49-12-U500C), (1) EXACT 600 MCM Copper U Style Die (49-12-U600C), (1) EXACT 750 MCM Copper U Style Die (49-12-U750C), carrying case
