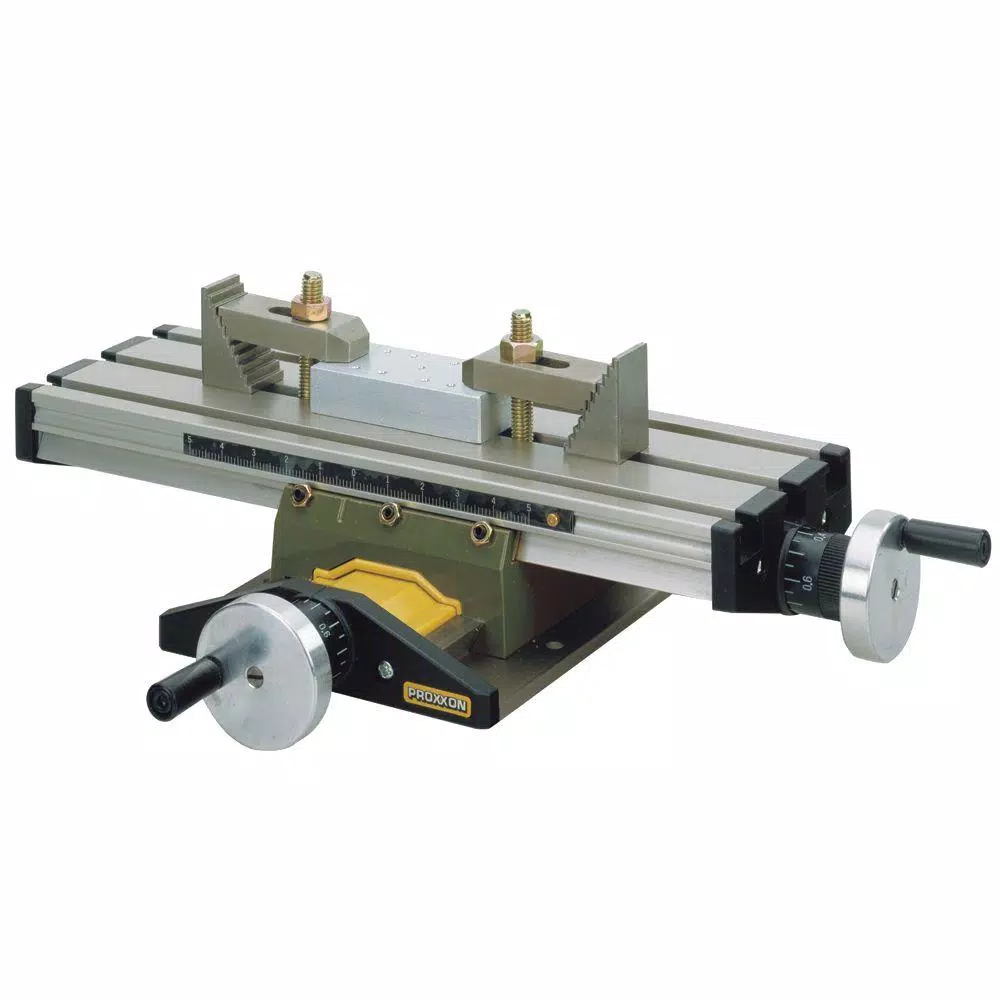

Proxxon Micro Compound Table KT70

Proxxon German engineered micro compound table KT70 for precise milling, facing, drilling or grinding operations as well as positioning. This high precision table is the optimal attachment when used with microdot drill stand MB140/S number 28606, the bench drill machine TBM115 number 38128 and machine vise MS4 number 28132. Table is made from surface treated aluminum for precision work surface; had three longitudinal T-slots and provides dual axis (lateral and cross) positioning via two hand wheels for precise adjustments. Backlash is controlled by adjustable dovetails. Hand wheels have zero resettable dials graduated in 0.05 mm increments (one complete revolution of hand wheel equals 1.0 mm complete revolution of hand wheel equals 1.0 mm, one pitch line equals 0.05 mm feed) for very precise and accurate set up.

• Clamping accessories for easy attachment on or below the MB140/S, TBM115 and MS4 come with the micro compound table; can also be used with other drill stands or drill presses
• Adjustable ruler facilitates positioning of cross slide; covered spindle to protect from dirt; one set (2-piece) of step clamps are included, set up ease
• X-travel 5-9/32 in. (134 mm), Y-travel 1-13/16 in. (46 mm), overall height 1-11/16 in. (43 mm)
• Fits drill press no. 38128 and drill stand no. 28606
