Spectra Precision Rotary Combined Machine Control Laser Level Receiver

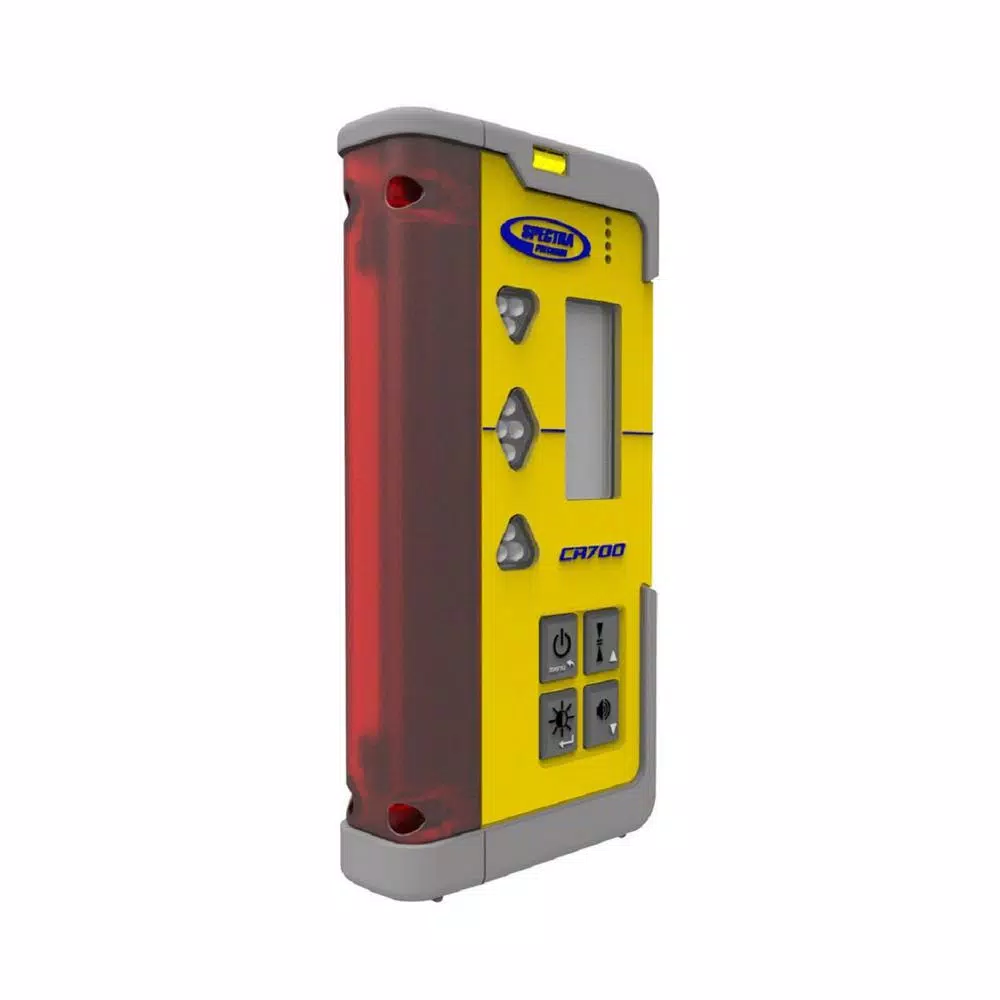

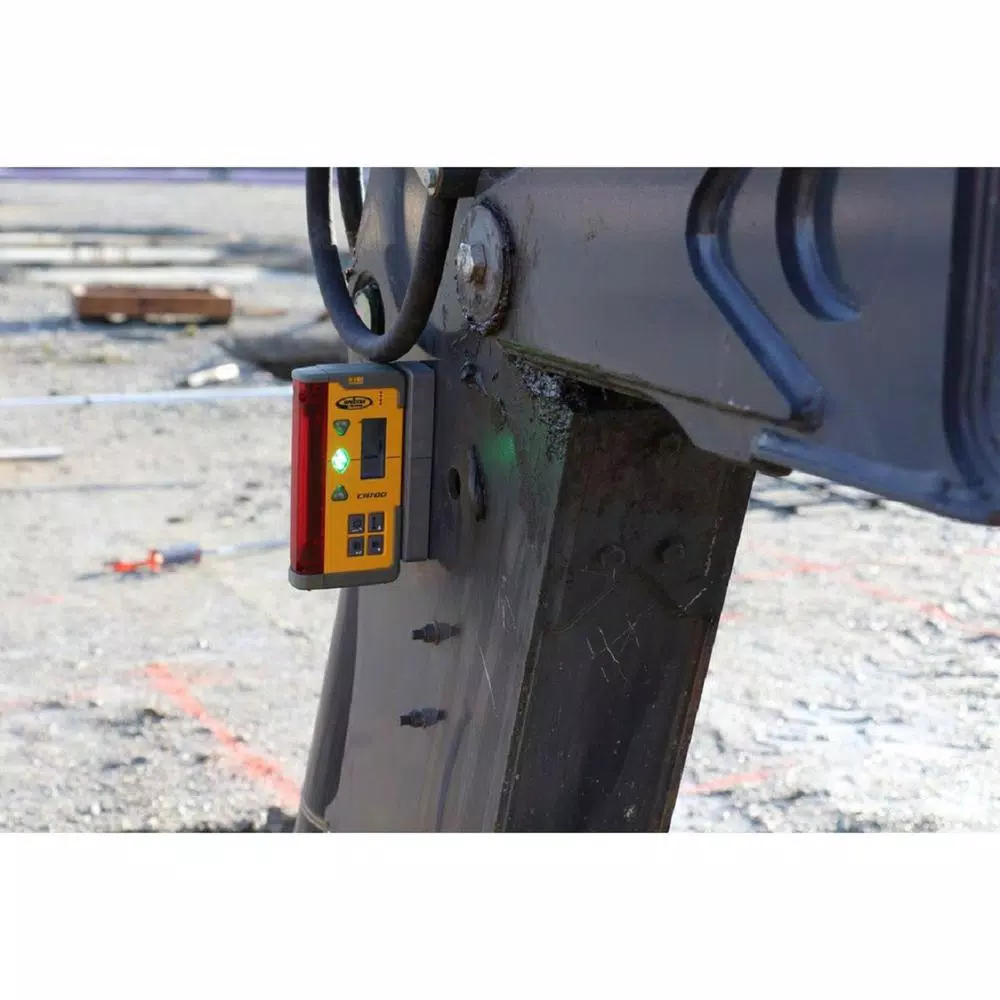

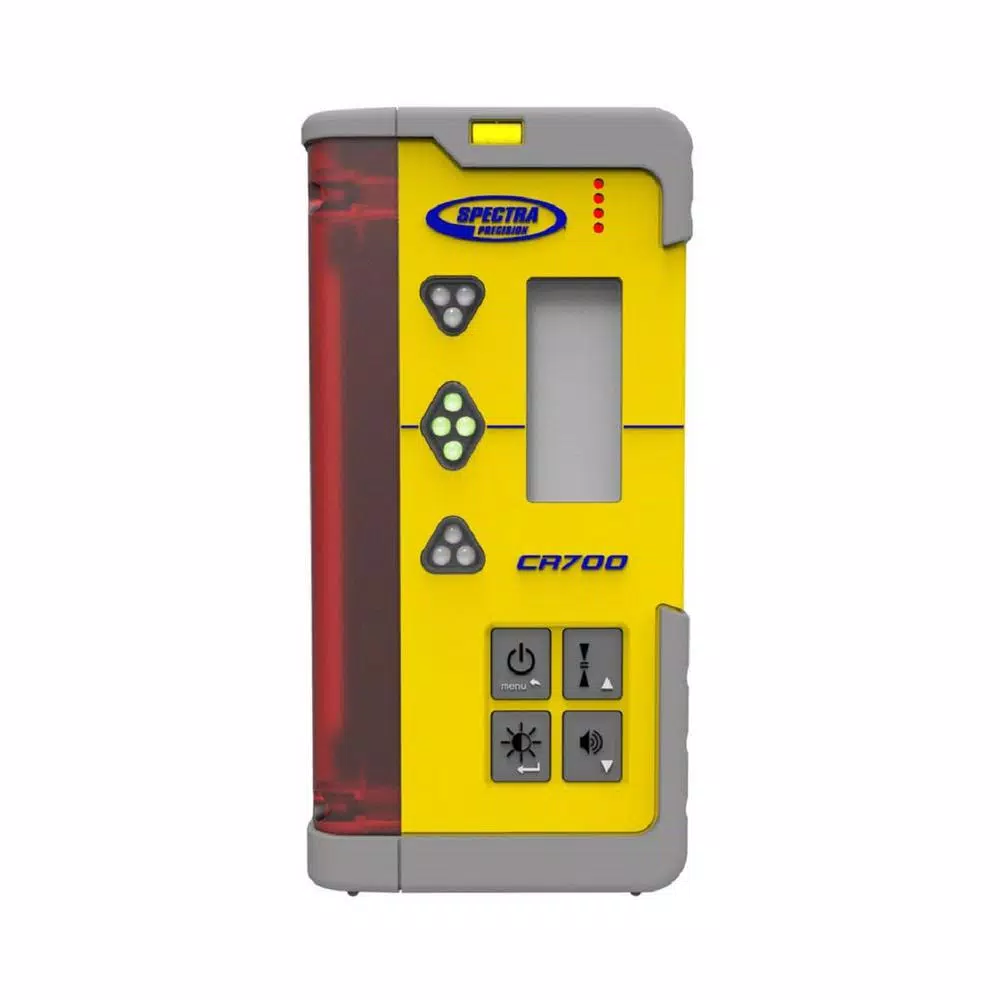

The Spectra Precision CR700 Laser Machine Control Receiver is a machine mounted display receiver used on small grading and excavating equipment as well as a traditional laser receiver mounted to a grade rod. The CR700 includes both a magnetic mount for quick machine mounting and a grade rod clamp. With super bright directional LEDs, it is ideal for entry-level machine grade display, specifically on mini-excavators and backhoes. This provides instant grade information to the operator and eliminates the need for a rod man in the trench. The CR700 uses the patented light bar technology providing more accurate and more consistent readings than traditional methods and has fewer electronic components. It is also ideally suited to work in vertical application for alignments control. The LEDs are visible at long range and a vertical drift alarm warns if the laser is disturbed.

• Works with Spectra grade lasers and all rotating lasers
• Light Bar technology
• Reception angle: 200°
• Working radius up to 1,500 ft.
• Fingerprinting technology
• Bright LED arrow displays
• Radio-compatible with the GL400N/GL600N series grade lasers and HV302
• Provides the exact distance from on-grade numerically
• Can be used as a remote display
• Allows operator to check grade from the cab

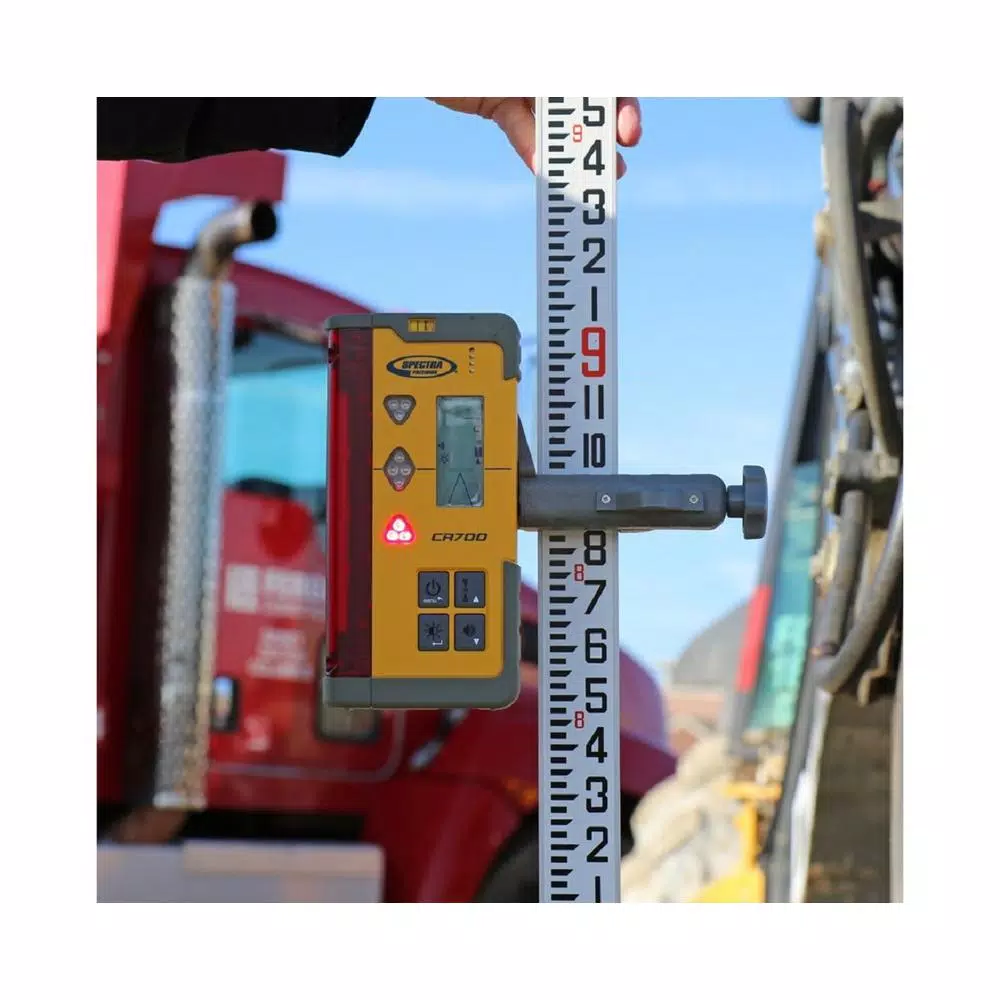

• Can be used on a machine, on a grade rod and in vertical applications
• Super bright LEDs can be seen in all working conditions
• Working radius: 1 m to 460 m (3 ft. to 1500 ft.)
• Radio working radius: up to 200 m (660 ft.)
• Strobe anti-strobe sensor
• Power supply: 3 x 1.5-Volt AA batteries
• Waterproof, dustproof to IP67
