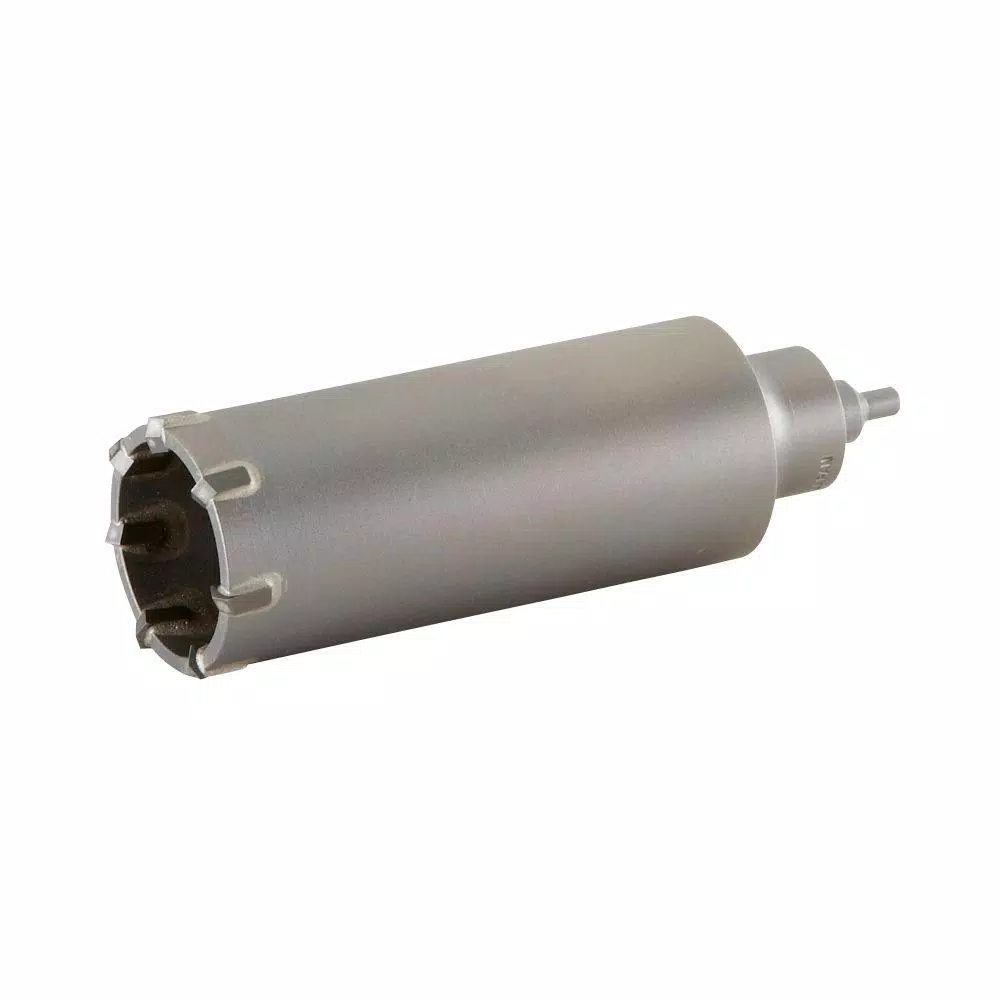

Milwaukee 1-1/4 in. x 3-3/16 in. Thin Wall SDS-Plus Core Bit
$92.00
The Milwaukee 1-1/4 in. x 3-3/16 in. Thin Wall SDS Plus Core Bit is recommended for positioning and starting 1-1/4 in. hole and larger. This thin wall construction is ideal for smaller hammers and newer concrete.
Order within 9 hours 44 minutes for free delivery on or before Tue, Aug 5th (See details)
In stock
Milwaukee’s Carbide Tipped Core Bits are ideal for drilling large holes where the depth is relatively shallow. The Core Bit cuts a kerf only. The usable depth of Thin Wall Core Bits ranges from 2-13/16 in. to 3-3/16 in. The Thin Wall construction is ideal for smaller hammers and newer concrete. The inside core must be removed by the operator before deeper drilling can be accomplished. Multiple extensions and adapters are available to allow for deeper holes to be drilled. The appropriate drive shank must be used to drive the Core Bit. Use of Center Pin and Guide Plate is recommended for positioning and starting a 1-1/4 in. hole and larger. Use of Center Pin and Guide Plate is not recommended for positioning and starting a 1-1/8 in. hole or smaller. Milwaukee Carbide Tipped Core Bits are available from 1 in. to 6 in. Dias. Includes Core Bit Centering Pin and Guide Plate.
- 1-1/4 in. Dia
- Usable cutting depth 3 in.
- Thin wall
- Use with SDS core bit shank 48-03-3545 (8 in.) or 48-03-3551 (12 in.)
| Weight | 0.71 lbs |
|---|---|
| Dimensions | 1.52 × 1.52 × 7.32 in |
| Assembled Depth (in.) | 1.52 in |
| Assembled Height (in.) | 7.32 in |
| Assembled Width (in.) | 1.52 in |
| Bit Diameter | 1-1/4 in |
| Bit Length (in.) | 7 |
| Bit Material | Carbide |
| Connection End Type | 1 1/4 in. – 7 in. |
| Drill Bit Type | Coring Bit |
| Drill Bit Type(s) Included | Coring Bit |
| Individual/Set | Individual |
| Material Application | Brick, Concrete |
| Model | 48-20-5015 |
| Self-Feeding | No |
| Shank Diameter | 3/4 in |
| Shank Style | SDS Plus |
| Tools Product Type | Power Tool |
