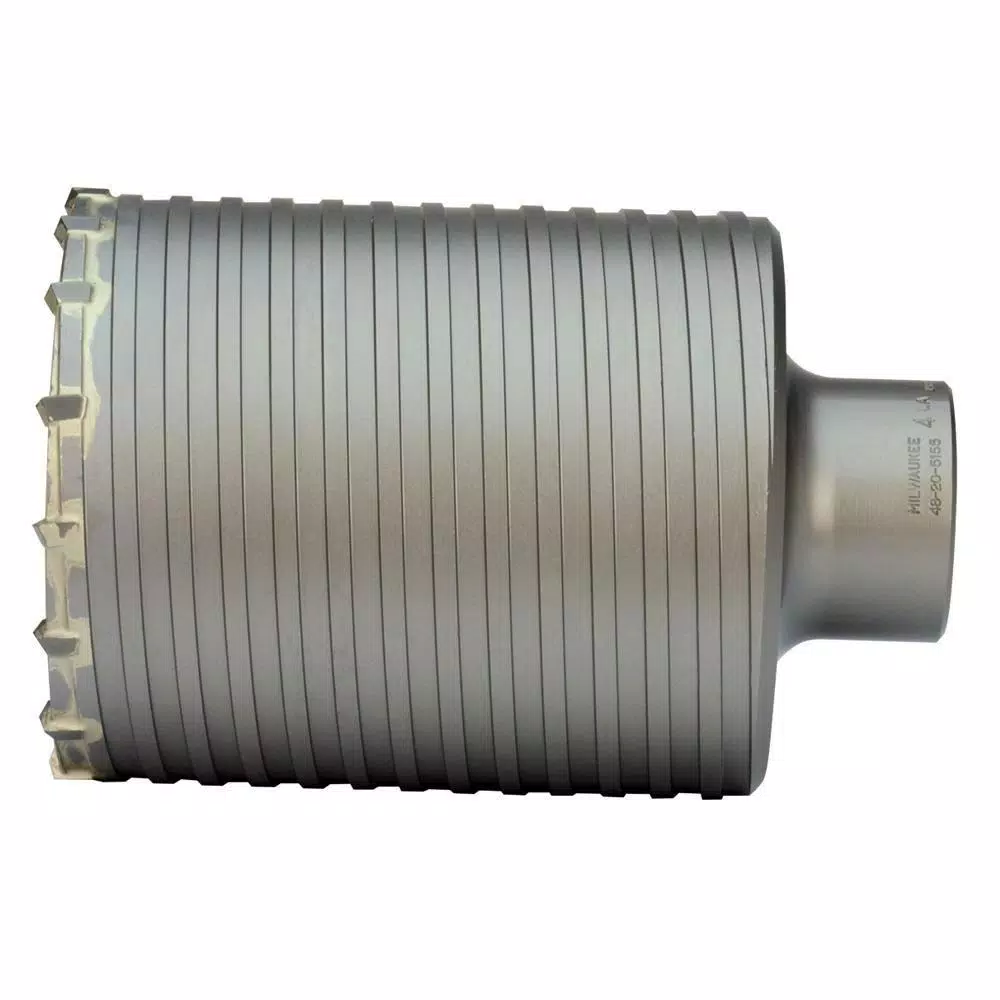

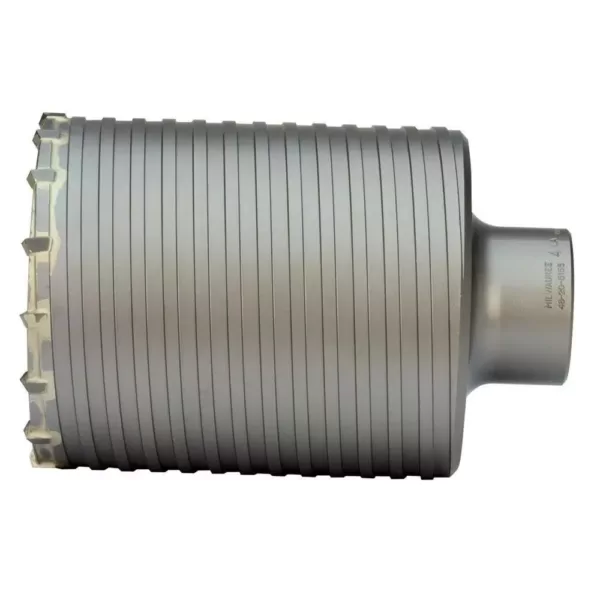

Milwaukee 3-1/2 in. x 4-1/16 in. Thick Wall SDS-MAX with Spline Core Bit
$223.00
The Milwaukee 3-1/2 in. x 4-1/16 in. Thick Wall SDS-Max with Spline Core Bit is recommended for positioning and starting 1-1/4 in. hole and larger. This thin wall construction is ideal for smaller hammers and newer concrete.
Order within 20 hours 22 minutes for free delivery on or before Sat, Jun 21st (See details)
In stock
Milwaukee’s Carbide Tipped Core Bits are ideal for drilling large holes where the depth is relatively shallow. The Core Bit cuts a kerf only. The usable depth of Thick Wall Core Bits is 4-1/16 in. Thick Wall Core Bits are used for cured/seasoned concrete or use with larger hammers. The inside core must be removed by the operator before deeper drilling can be accomplished. Multiple extensions and adapters are available to allow for deeper holes to be drilled. The appropriate drive shank must be used to drive the Core Bit. Use of Center Pin and Guide Plate is recommended for positioning and starting a 1-1/4 in. hole and larger. Use of Center Pin and Guide Plate is not recommended for positioning and starting a 1-1/8 in. hole or smaller. Milwaukee Carbide Tipped Core Bits are available from 1 in. to 6 in. Dia Includes Core Bit Centering Pin and Guide Plate.
- 3-1/2 in. Dia
- Usable cutting depth 4-3/8 in.
- Thick wall
- Use with thick wall core bit shank 48-03-3564 (12 in.) or 48-03-3565 (18 in.)
| Weight | 4.03 lbs |
|---|---|
| Dimensions | 4.63 × 4.63 × 7.25 in |
| Assembled Depth (in.) | 4.63 in |
| Assembled Height (in.) | 8 in |
| Assembled Width (in.) | 6 in |
| Bit Diameter | 3-1/2 in |
| Bit Length (in.) | 8 |
| Bit Material | Carbide |
| Connection End Type | 1 1/4 in. – 7 in. |
| Drill Bit Type | Core |
| Drill Bit Type(s) Included | Hammer Drill Bit |
| Individual/Set | Individual |
| Material Application | Brick, Concrete |
| Model | 48-20-5150 |
| Self-Feeding | No |
| Shank Diameter | 45/64 in |
| Shank Style | SDS Plus |
| Tools Product Type | Power Tool |
